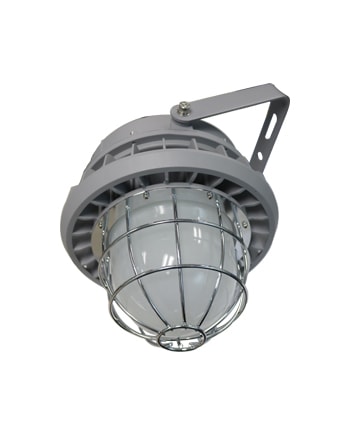

20W LED IP66 Explosion Proof High Bay, 2,800 lumens




$459.00

Model Number: USXPB20WJS

LED Explosion Proof Fixtures are built using Copper-Free Die-Cast Aluminum for the housing. UL Marine Rated for use in Salt Water Environments. Compact and Versatile Design can be used as High Bay or Flood Light. Perfect for Petrol Gas Stations, Chemical, Natural Gas, Sea Ports/Shipyards, Ocean Tankers, Coal Mining, Military Applications, Airports, Oil and Chemical Processing and Storage.

To Order this LED Flood Light or For More Information Call

855 672-7020

Related Documents:


Save Save

Additional information

Product type

Explosion Proof High Bay

Manufacturer

uSaveLED

Model Number

USXPB20WJS

Price

$509.00, $459.00 (10+ units)

Voltage

100-277VAC / 200-480VAC Available (Add $49.00)

Wattage

20

Lumens

2,800

Lumens per watt

140

Beam angle (degrees)

60° / 90° / 110° / 140°

Glass Lens

Available (Add $89.00)

Wire Guard

Available (Add $49.00)

Reflector

Full Cut Reflector Available (Add $89.00), Half Cut Reflector Available (Add $89.00)

Mounting Options

25° Pole Stanchion Available (Add $199.00) / Straight Pole Stanchion Available (Add $189.00) / Wall Arm Available (Add $139.00) / Ex-Box with 12 inch Pendant Mount Pole Available (Add $139.00), Universal U-Bracket Standard

Class and Division

Class 1 Div. 2 Group A, B, C, D / Class 2 Div. 1 Group E, F, G / Class 2 Div. 2 Group E, F, G / Class 3

Kelvin (CCT)

4000 / 5000 / 5700

CRI

>80

Power Factor

>0.95

Life span

150,000+ (L70)

Dimmable

NO

Waterproof

YES (NEMA 4X, IP66)

Certifications

ATEX, CSA, IECEX, UL

Length of Warranty (years)

5

Dimensions

10.63’’ x 10.32’’ x 6.23’’

Suggested Replacement For

100W Metal Halide

Percent of wattage saved from average replacement*

80%

SKU: USXPB20WJS. Category:
uSaveLED
