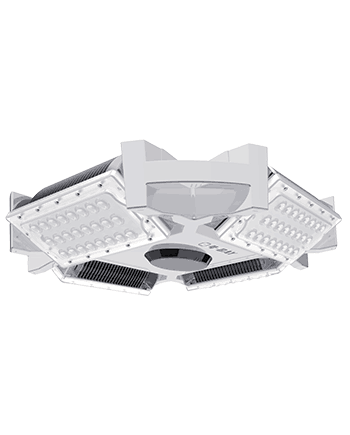

300W LED High Bay Adjustable Beam “4-Bay”, 41,325-45,675 Lumens




$695.00

Model Number: USHB300WCM

Design Light Consortium Approved and ETL Rated for Quality and Rebates. Uniquely Designed with Four 200° Hand Rotatable Modules Allowing for Custom Spread of Light and Eliminating
Dark Areas. Featuring Optional 360° Camera for Increased Security. Perfect for Warehouses, Garages, Automotive Body Shops, Storage Bays, Arenas, Manufacturing Plants, Gyms, Supermarkets, Security Lighting and
Much More!



To Order or For More Information Call

855 672-7020

Related Documents:

USHB300WCM.pdf

Additional Information

USHB300WCM.ies


Additional information

Product type

Adjustable Beam “4-Bay” High Bay

Manufacturer

uSaveLED

Model Number

USHB300WCM

Price

$695.00 (10 units or more), $769.00

Voltage

Meanwell HLG 90-305VAC Standard / 347-480VAC Available (Add $49.00)

Wattage

300

Lumens

41,325-45,675

Lumens per watt

137.75-152.25

LED Chipset

Philips Lumileds

Beam angle (degrees)

60, 120

Mounting Options

Eyelet for Hook and Chain Standard / 30cm-60cm Extendable Pole Mount Available (Add $39.00)

Kelvin (CCT)

3000, 4000, 5000, 5700, 6500

CRI

>70 Standard / >80 Available (Add $5.00)

Power Factor

>0.95

Life span

50,000+

Dimmable

YES (1-10V) (Add $20.00)

Waterproof

YES (IP65)

IK Rating (Impact and Vibration Resistance)

IK09

Operating Temperature

-40° to +60°C (-40° to +140°F)

Certifications

DLC 4.3 Premium, ETL, RoHS

Length of Warranty (years)

5yr

Dimensions

16.89’’x16.89’’x6.26’’

Suggested Replacement For

1350W Metal Halide

Percent of wattage saved from average replacement*

77.78%

Notes

On/Off Function Microwave Motion Sensor Available (Add $21.00) / 1-10V Dimming Microwave Motion Sensor Available (Add $39.00) / IP65 Waterproof
1-10V Dimming Microwave Motion Sensor Available (Add $59.00) / Remote for IP65 Motion Sensor Available (Add $45.00) / 360° Panorama App-Connected Smart Security Camera Available (Add $159.00)

SKU: USHB300WCM. Category: Tags: ,
uSaveLED
  • USHB300WCM.ies


    USHB300WCM.(30°).ies

    USHB300WCM.(60°).ies

  • USHB300WCM.ies


    USHB300WCM.(30°).ies

    USHB300WCM.(60°).ies
